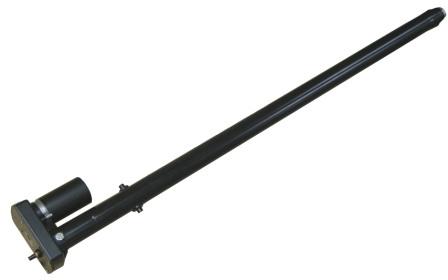

Linear Actuator 01VH plus
Specification:
Model | 01VH plus |
Input | 12 V DC |
Max. Load | 4500N |
Max. Speed | 70 mm/sec |
Gear Ratio | 18:1 |
Standard Stroke | 600/1000 mm |
Duty cycle | 10% |
Max. Load: 4500N
Motor Voltage: 12V DC
Max. Speed: 70 mm/sec
Standard Stroke: 600/1000mm
Max. Current: 30A
Clutch
No Back Driving
Powder Metallurgy Gears
Duty Cycle: 10%
Model No. Designations
01VH plus- |
12-
Voltage
12 V DC
|
18-
Gear Ratio
18-18:1
|
1000-
Stroke
600mm
1000mm
|

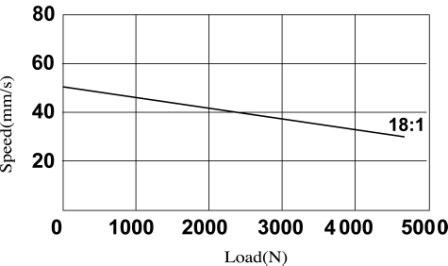

Speed vs Load |

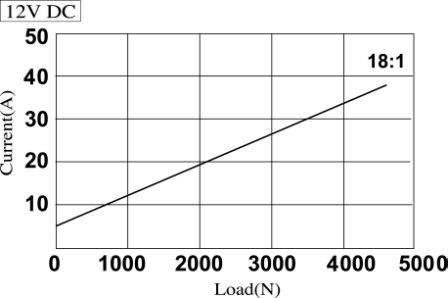

Current vs Load |
|
|
|
