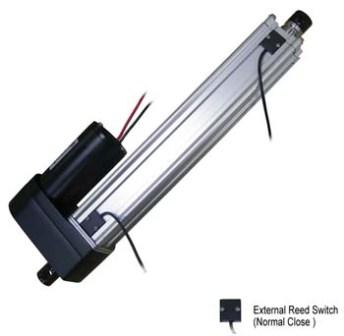

Industrial Actuator
01US12 ACME

Specification:

Model	01US12 ACME
Input	12 / 24VDC
Max. Load	3500N
Max. Speed	35 mm/sec
Stroke Length	102, 153, 203, 305, 457, 610 mm
Gear Ratio	10:1, 20:1, 40:1
Duty Cycle	25%
Environment	-25 ° C ~ 65 ° C
Static Load Capacity	4500N

FEATURE:
Max. Load: 3500N
Motor Voltage: 12/24V DC
Max. Speed Range: 8~35mm/sec
Standard Stroke: 102/153/203/305/457/610mm
External/ Adjustable Multi-Reed Switches
Overload protection by clutch
Stainless steel extension tube
High efficiency Ball Screw
Working temperature: -25° C to +65° C
Duty cycle: 25%
Gear ratio: 10:1, 20:1, 40:1
IP54


Option:

• Potentiometer
• Adjustable Reed Switches
• Optional or Customized Front/Rear Mounting Bracket
• Protection: IP65

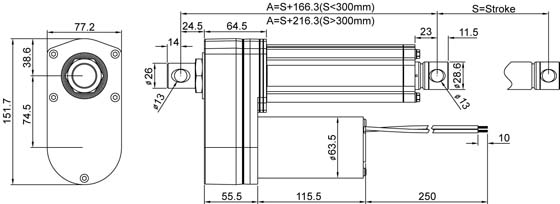

Model No. Designations

01US12-

24- Voltage 24-24 VDC 12-12 VDC

40- Gear Ratio 40-40:1 (20-20:1)

A- B:Ñ ACME A:Ñ Ball Screw

610- Stroke (mm) 102 153 . .

ERS.POT... ERS: External Reed Switches POT: Potentiometer IP65

Speed vs Load	Current vs Load
