TVRO Satellite-Actuator
& Positioner

Tel. +49 (0)    aktuator@aktuator.org

01GAW-12

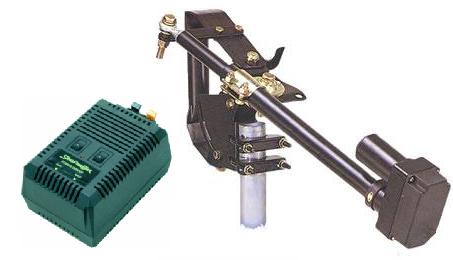

3 IN 1 Package
The simplest way for installation and upgrade




01GAW-12


Content:

 01RS (Regular) Actuator  Polar Mount 01ON12   01WQ-101 Positioner East / West Manual
01RS (Regular) Actuator Polar Mount 01ON12 01WQ-101 Positioner East / West Manual


Specification:
Model 01RS
Input 36VDC
Load Capacity 3000N
Strock Length 300mm
Drive ACME
Full Load Speed 4.2mm/sec
Duty Cycle 20%
Temperature -26° C~65° C
Limit Switch Adjustable
Sensor Reed Switch Sensor
Static Load 4500N


Specification:
Model 01WQ-101
Power Consumption(Max.) 70W
Input 220~240V AC / 50 Hz (110V AC Available)
Compatible Motors 24В~36V DC
Max.Current 2.2A
Dimension(mm) 160L x 100W x 73H
Manual Control Buttons YES
Short Circuit Protection YES
Overload Protection Thermal auto-reset


For Dish up to 1.2 M Max.

110° Azimuth Angle(70°E+40°W or 40°W+70°E)
20°~80° Elevation Angle
Corrosion Resistant
