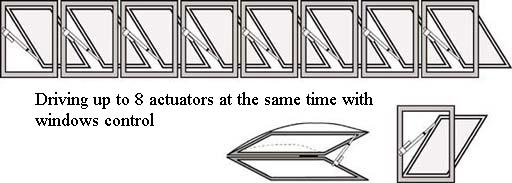

Industrial Actuator 01KS3

Specification:

Model	01KS3
Input	12 / 24VDC
Max. Load	1200N
Max. Speed	45 mm/sec
Stroke Length	50, 100, 150, 200, 250, 300 mm
Gear Ratio	5:1, 10:1, 20:1, 30:1, 40:1
Mounting	Clevis to Clevis Mounting (different angles available)
Duty Cycle	25%
Environment	-25 ° C ~ 65 ° C

FEATURE:
Max. Load: 1200N
Motor Voltage: 12/24V DC
Max. Speed Range: 7~45mm/sec
Standard Stroke: 50/100/150/200/250/300mm
Compact Design
Aluminum Extension & Outer Tubes
Preset Limit Switches
Duty Cycle: 25%
IP54

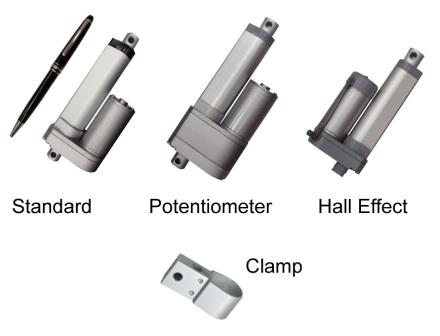

Option:

• Hall Effect Sensor
• Potentiometer
• Optional or Customized Front Mounting Bracket
• Clamp
• IP65

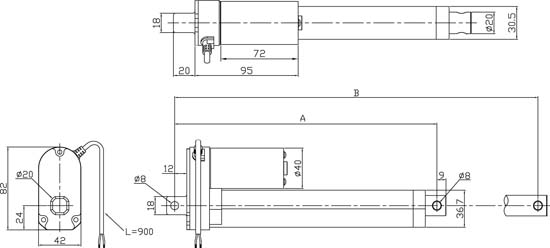

Model No. Designations

01KS3-

12- Voltage 24-24 VDC 12-12 VDC

20- Gear Ratio 5-5:1 10-10:1 20-20:1 30-30:1 40-40:1

200- Stroke (mm) 50 mm 100 mm 150 mm 200 mm 250 mm 300 mm

HS.POT.IP65 Option HS: Hall Effect Sensor HS2: Dual Hall Effect Sensors POT: Potentiometer Sensor IP65

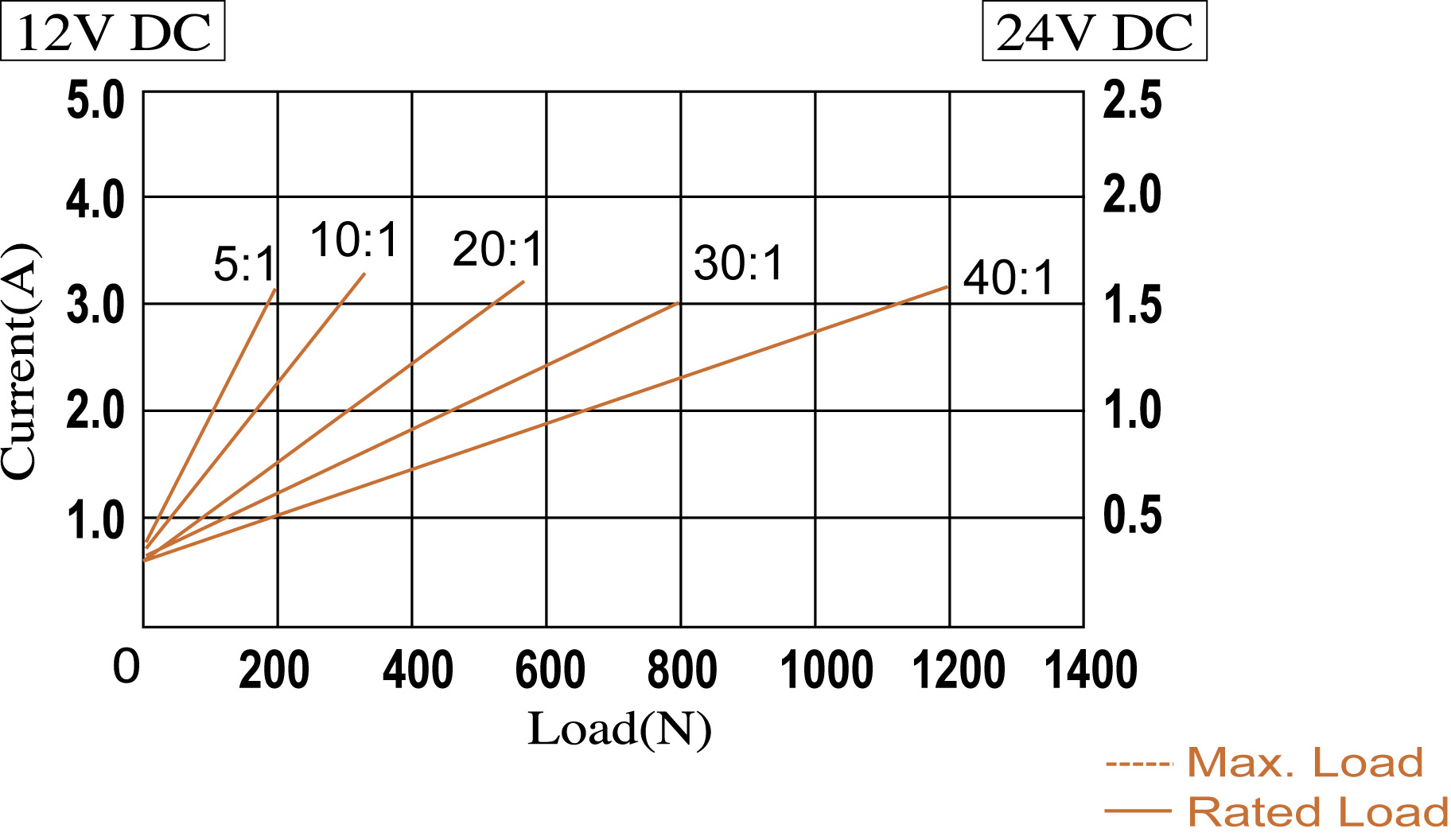

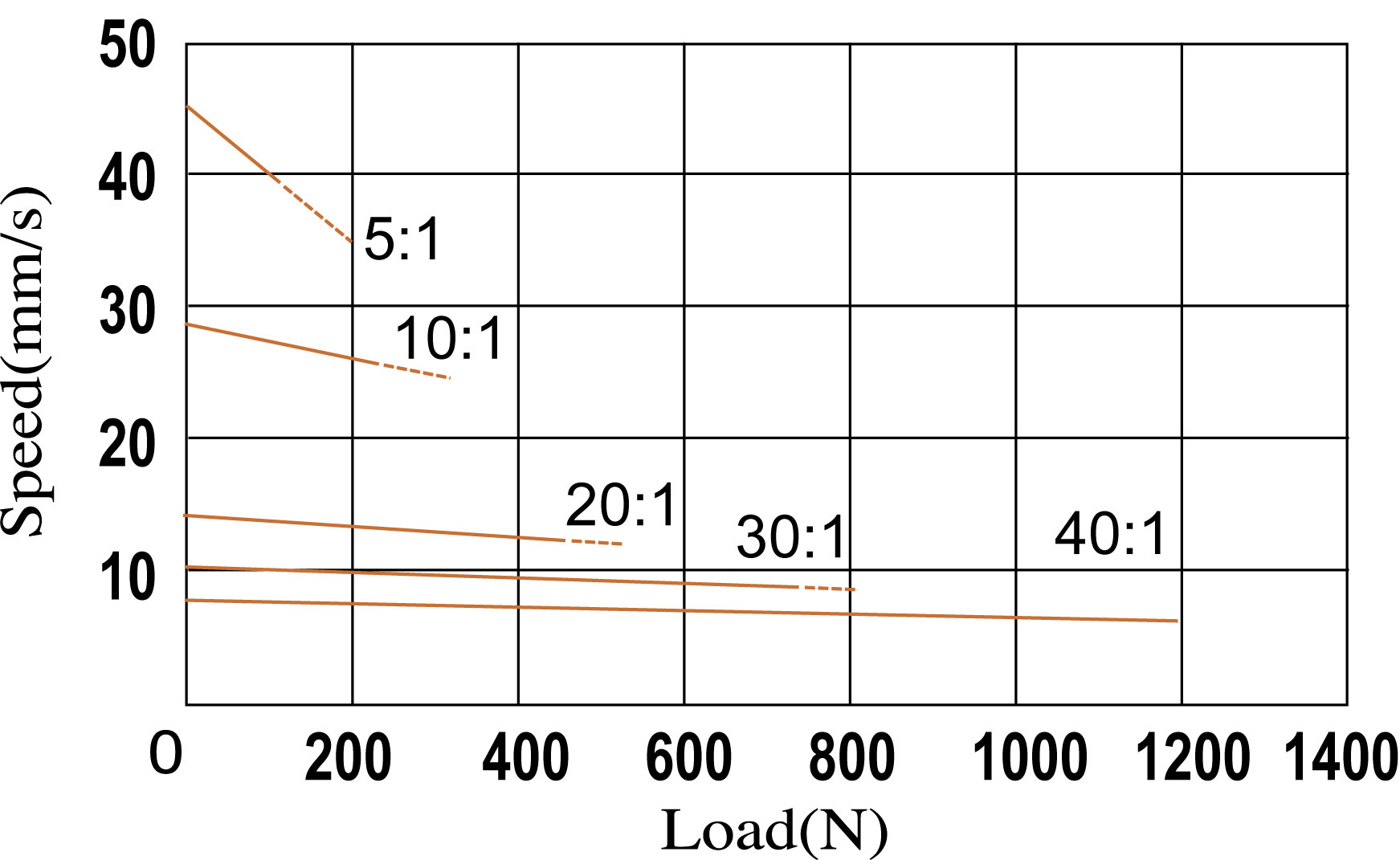

Speed vs Load	Current vs Load

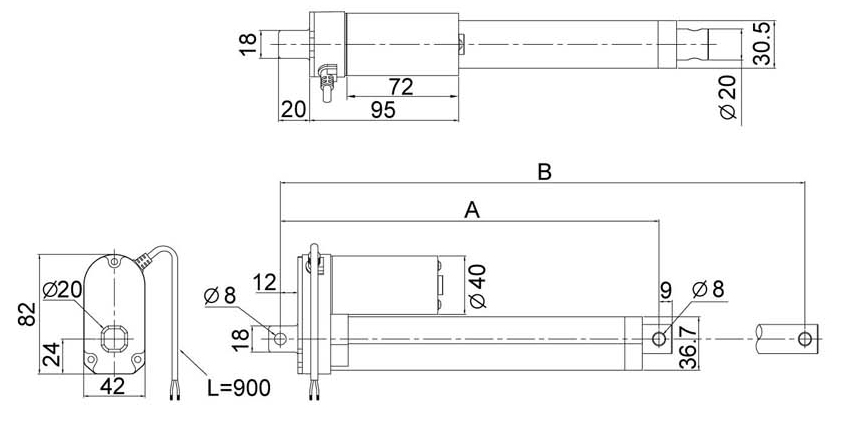

Standart:

	Stroke (mm)	50	100	150	200	250	300
	Retracted Lenght (mm)	158	209	260	311	362	413
	Extended Lenght (mm)	208	309	410	511	612	713

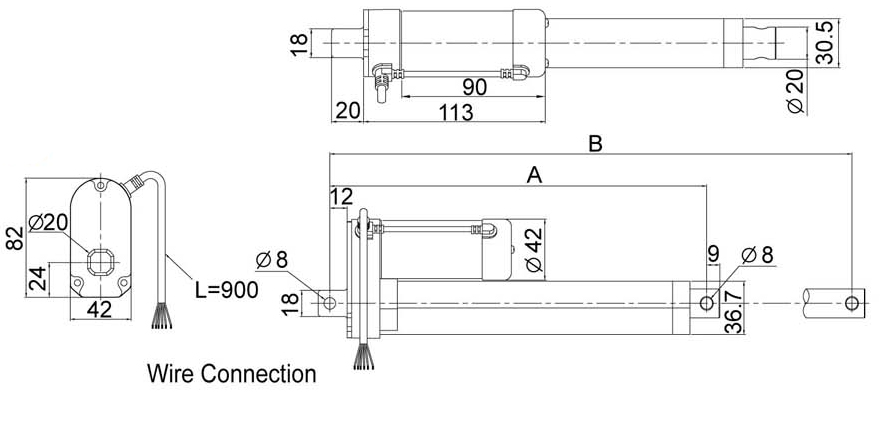

Potentiometer:

	Stroke (mm)	50	100	150	200	250	300
	Retracted Lenght (mm)	195	246	297	348	399	450
	Extended Lenght (mm)	245	346	447	548	649	750

Potentiometer
Stroke (mm)	Resistance Ohm
50 100 150 200 250 300	0.3-9.3K 0.3-9.7K 03.-8.6K 0.3-9.6K 0.3-9.3K 0.3-9.3K
Remark: tolerance +-0.3K

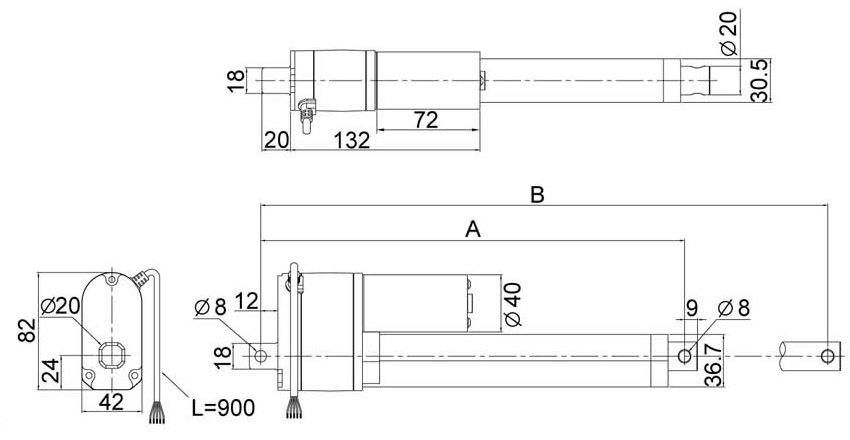

Hall Effect Sensor:

	Stroke (mm)	50	100	150	200	250	300
	Retracted Lenght (mm)	158	209	260	311	362	413
	Extended Lenght (mm)	208	309	410	511	612	713

Hall Effect Sensor
Gear Ratio	Resolution (Pulses/mm)
5:1 10:1 20:1 30:1 40:1	2.3 3.6 6.9 10.6 14.3
