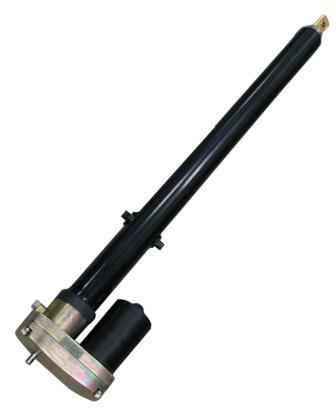

Compact Actuator 01RV

Specification:

Model	01RV
Input	12 / 24 VDC
Max. Load	2500N
Max. Speed	28 mm/sec
Gear Ratio	18:1
Duty Cycle	10%

Max. Load: 2500N
Motor Voltage: 12/24 V DC
Max. Speed: 28 mm/sec
Standard Stroke: 600/1000mm
No Back Driving
Duty Cycle: 10%


Model No. Designations

01RV-

12- Voltage 12 VDC 24 VDC

18- Gear Ratio 18-18:1

1000- Stroke 600mm 1000mm

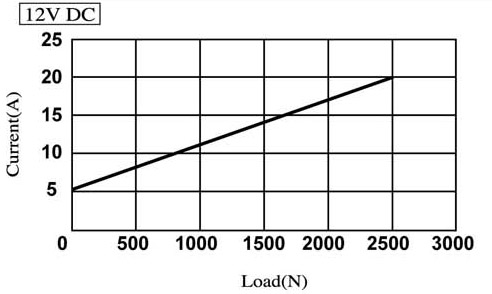

Speed vs Load	Current vs Load
