Industrial Actuator

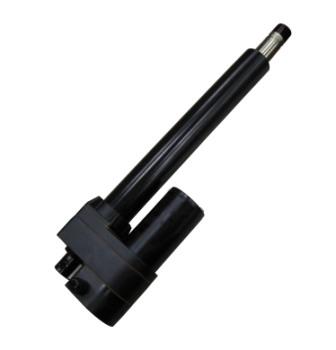

01US11B

Specification:

Model	01US11 Ball Screw
Input	12 / 24VDC
Max. Load	7000N
Max. Speed	34 mm/sec
Stroke Length	102, 153, 203, 305, 457, 610 mm
Gear Ratio	10:1, 20:1, 30:1, 40:1
Duty Cycle	25%
Environment	-25 ° C ~ 65 ° C
Static Load Capacity	13600N

FEATURE:
Max Load: 7000N
Motor Voltage: 12/24V DC
Max. Speed Range: 8~34 mm/sec
Standard Stroke: 102/153/203/305/457/610mm
Stainless steel extension tube
Powder metallurgy gears
Overload Clutch Protection
Limit Switches Adjustable after Installation
Working temperature: -25 ° C to +65 ° C
Duty cycle: 25%
Gear ratio: 10:1, 20:1, 30:1, 40:1
Protection: IP54


Option:

• Optional or Customized Front/Rear Mounting Bracket
• Protection: IP65
• Side Cable

Model No. Designations

01US11-

24- Voltage 24-24 VDC 12-12 VDC

20- Gear Ratio 10-10:1 20-20:1 30-30:1 40-40:1

B- B:Ñ ACME A:Ñ Ball Screw

102- Stroke (mm) 102 153 . .

IP65.SC.C1.C2... IP65 SC:Side Cable

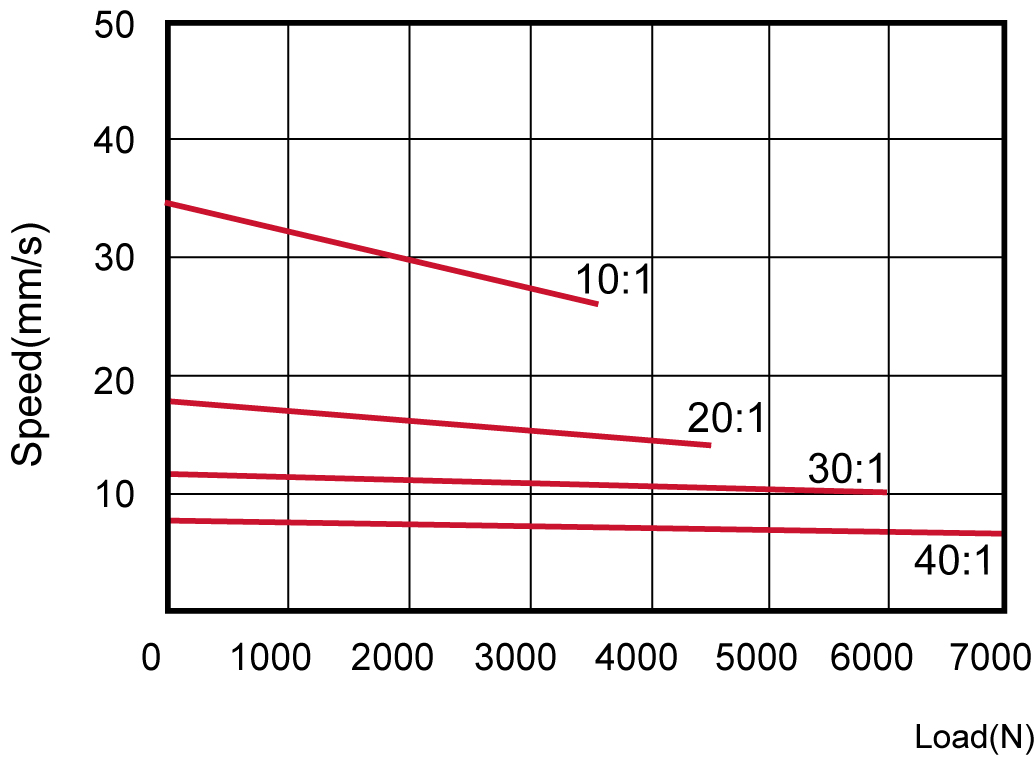

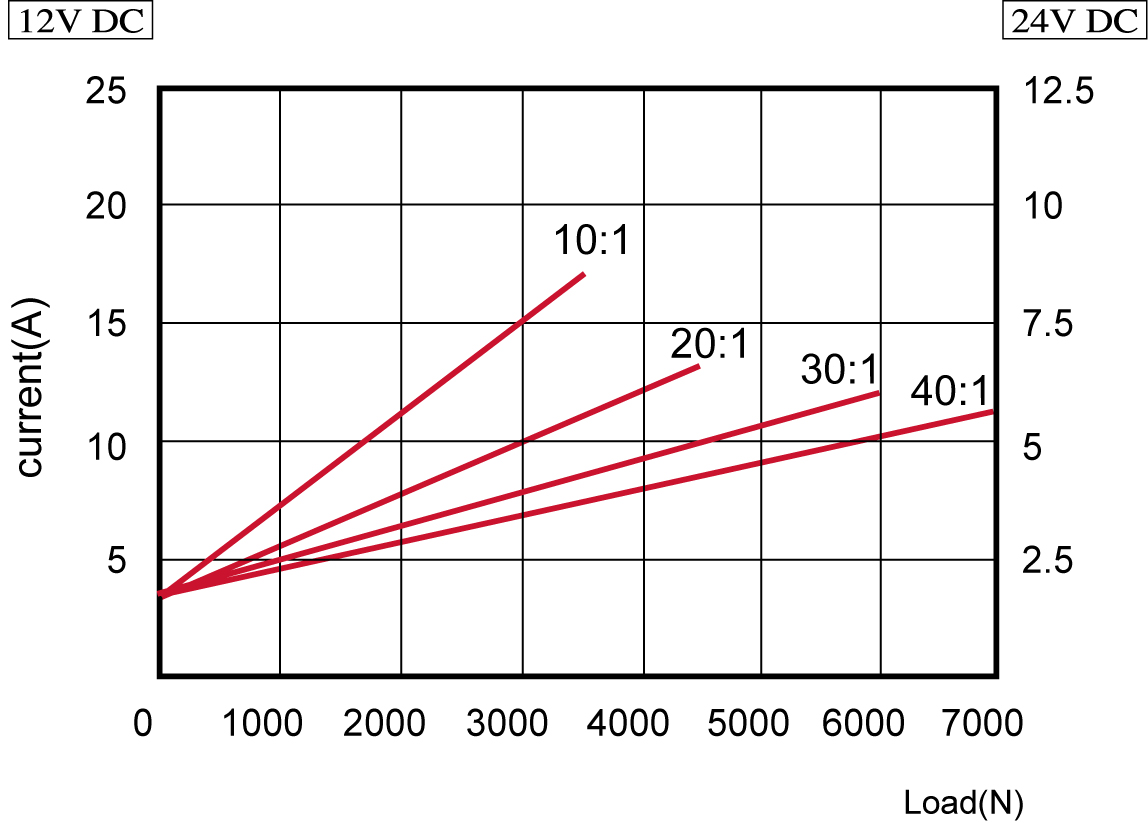

Speed vs Load	Current vs Load

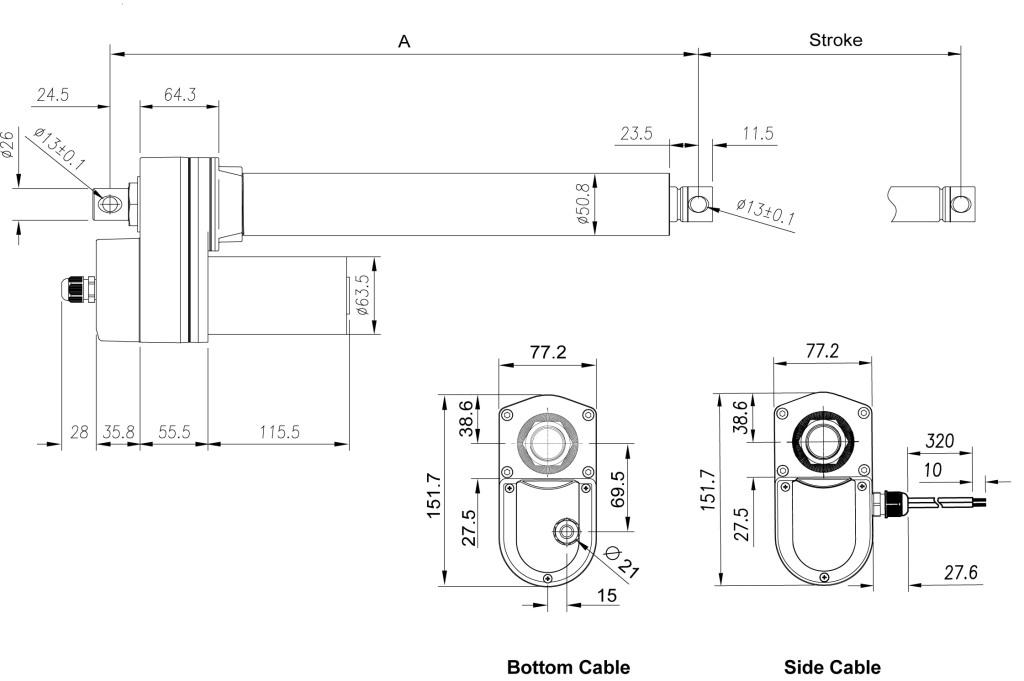

	Stroke (+-2,5mm)	102	153	203	305	457	610
	Retracted Lenght (+-3,8mm)	359	410	461	640	792	945
